TrackMapAnalyzer - Rally Stage - Aston Martin DBR9
Track layout visualization from GPS telemetry data
Sample Data
| Attribute | Value |
|---|---|
| Source | motec |
| Category | rally_stage |
| File | /Users/mhild/src/durandom/racing/b4racing/packages/source-motec/tests/fixtures/telemetry-NGP-Car_5-Aston_Martin_DBR9-Stage_138-20260122_120000.ld |
Available Channels (30): brake, brake_layer_temp_fl, brake_layer_temp_fr, brake_layer_temp_rl, brake_layer_temp_rr, brake_temp_fl, brake_temp_fr, brake_temp_rl, brake_temp_rr, brake_wear_fl, brake_wear_fr, brake_wear_rl, brake_wear_rr, clutch, damping_force_fl, damping_force_fr, damping_force_rl, damping_force_rr, distance, engine_temp, gear, handbrake, lap_distance_pct, lat_accel, long_accel, pitch, position_x, position_y, position_z, roll
Configuration
| Setting | Value |
|---|---|
| Metadata Only | False |
When to Use
- User wants to see the circuit layout
- User asks to visualize the track or racing line
Key Options
| Option | Description |
|---|---|
show_start_finish | Mark start/finish line (default: True) |
show_scale | Show scale bar (default: True) |
x_column | Column name for X position (default: 'x') |
y_column | Column name for Y position (default: 'y') |
lap_numbers | Specific laps to plot (default: all) |
Sample Output
Subjects Analyzed: 1 Context: Rally stage data
Default
| Property | Value |
|---|---|
| Format | png |
| DPI | 300 |
| Subjects | 1 |
Example Calls
Show me the track layout
analyze(analyzers='track_map', event='01H8SP4HK4')

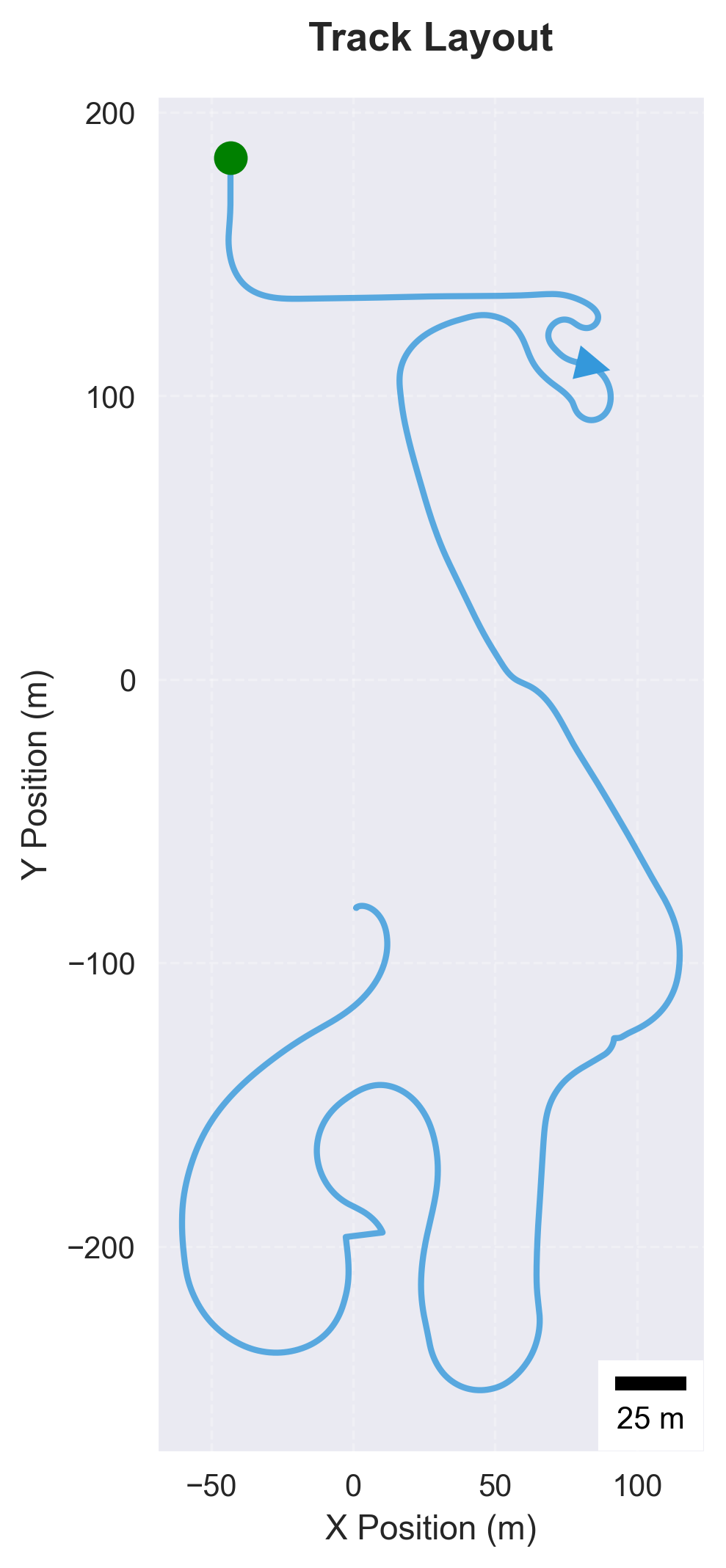

Displays circuit layout from GPS data with markers
Generated from b4racing.analysis.graphics.track_map.TrackMapAnalyzer
