TrackMapAnalyzer - Circuit Session - Lime Rock MX-5
Track layout visualization from GPS telemetry data
Sample Data
| Attribute | Value |
|---|---|
| Source | garage61 |
| Category | circuit_lap |
| File | 01K451BYJ64G0T2GPQ44AKXC86 |
Available Channels (23): LongAccel, VertAccel, YawRate, abs_active, brake, clutch, distance, drs_active, gear, lap_distance_pct, lat_accel, latitude, longitude, position_type, rpm, speed, steering, throttle, time, track_pct, x, y, yaw
Configuration
| Setting | Value |
|---|---|
| Metadata Only | False |
When to Use
- User wants to see the circuit layout
- User asks to visualize the track or racing line
Key Options
| Option | Description |
|---|---|
show_start_finish | Mark start/finish line (default: True) |
show_scale | Show scale bar (default: True) |
x_column | Column name for X position (default: 'x') |
y_column | Column name for Y position (default: 'y') |
lap_numbers | Specific laps to plot (default: all) |
Sample Output
Subjects Analyzed: 1
Default
| Property | Value |
|---|---|
| Format | png |
| DPI | 300 |
| Subjects | 1 |
Example Calls
Show me the track layout
analyze(analyzers='track_map', event='01H8SP4HK4')

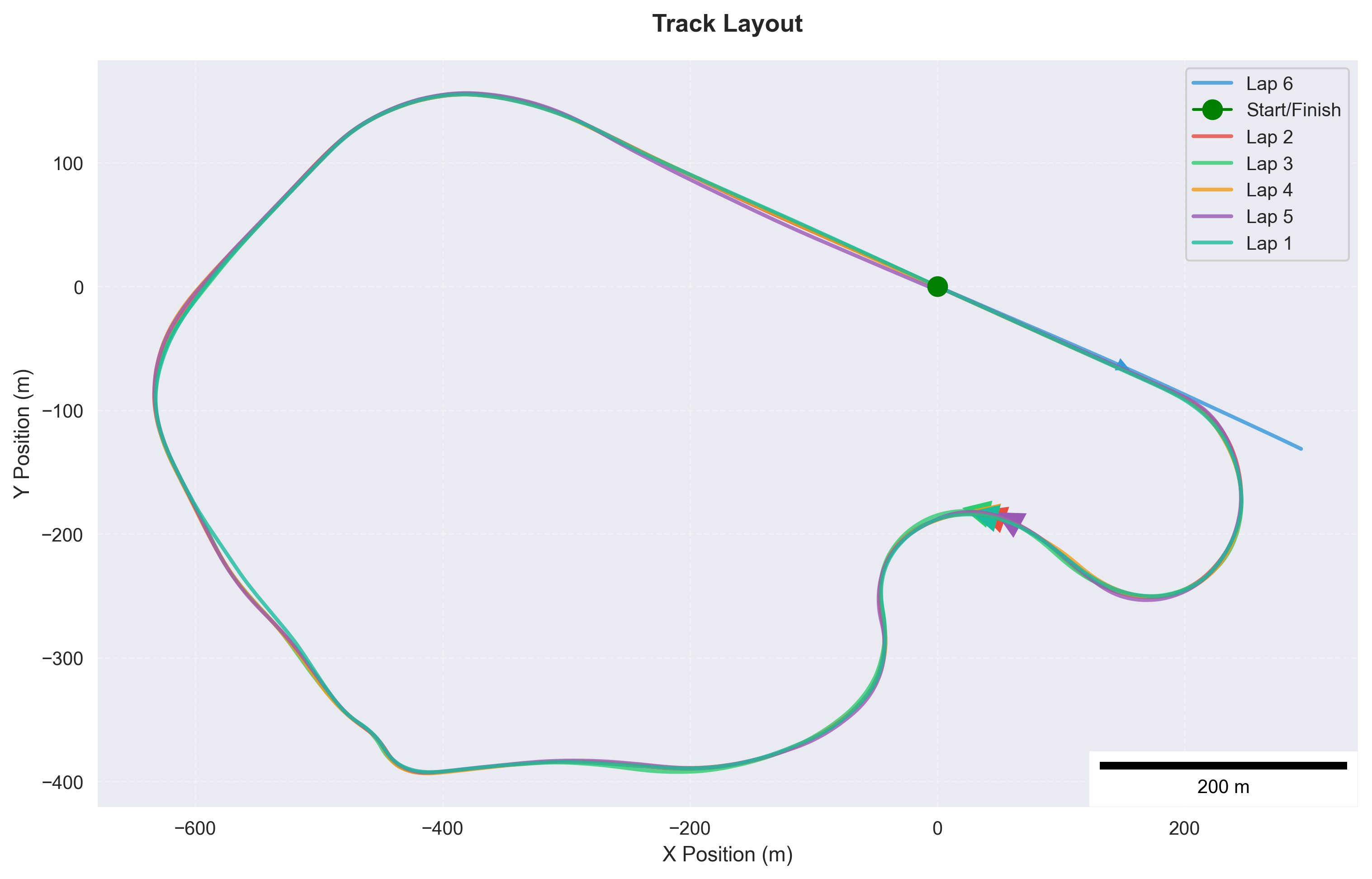

Displays circuit layout from GPS data with markers
Generated from b4racing.analysis.graphics.track_map.TrackMapAnalyzer
