LineChartAnalyzer - Circuit Session - Lime Rock MX-5
Generic line chart for telemetry data over distance or time
Sample Data
| Attribute | Value |
|---|---|
| Source | garage61 |
| Category | circuit_lap |
| File | 01K451BYJ64G0T2GPQ44AKXC86 |
Available Channels (23): LongAccel, VertAccel, YawRate, abs_active, brake, clutch, distance, drs_active, gear, lap_distance_pct, lat_accel, latitude, longitude, position_type, rpm, speed, steering, throttle, time, track_pct, x, y, yaw
Configuration
| Setting | Value |
|---|---|
| Metadata Only | False |
When to Use
- User needs custom line chart visualization
Key Options
| Option | Description |
|---|---|
x_column | X-axis column |
y_columns | Y-axis column(s) |

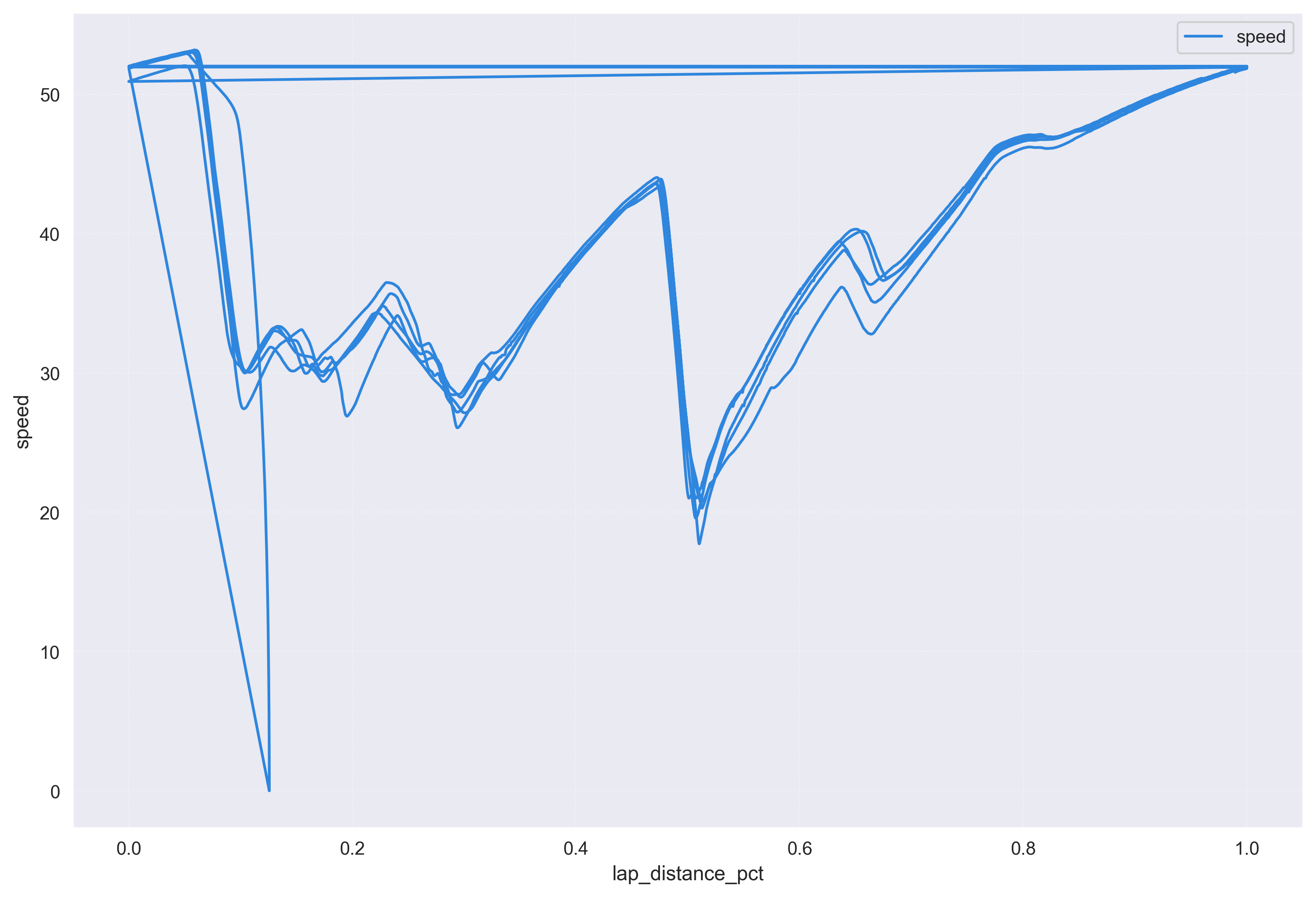

Sample Output
Subjects Analyzed: 1
Default
| Property | Value |
|---|---|
| Format | png |
| DPI | 300 |
| Subjects | 1 |
Generated from b4racing.analysis.graphics.line.LineChartAnalyzer
